This article provides an overview of the Easy Employer All In One (AIO) Kiosk and outlines the technical and network requirements needed to operate the unit successfully.
Contents
Related Articles
- Easy Employer Kiosk Models, Pricing & Ordering Guide
- All In One Kiosk | support agreement
- All In One Kiosk | Unit Troubleshooting
- Employee Guide | Setting a PIN Code
- Time Clock | Enrolling and Re-Enrolling a User’s Fingerprint
- HID DigitalPersona reader and module | Cleaning and technical documentation
All In One Kiosk overview

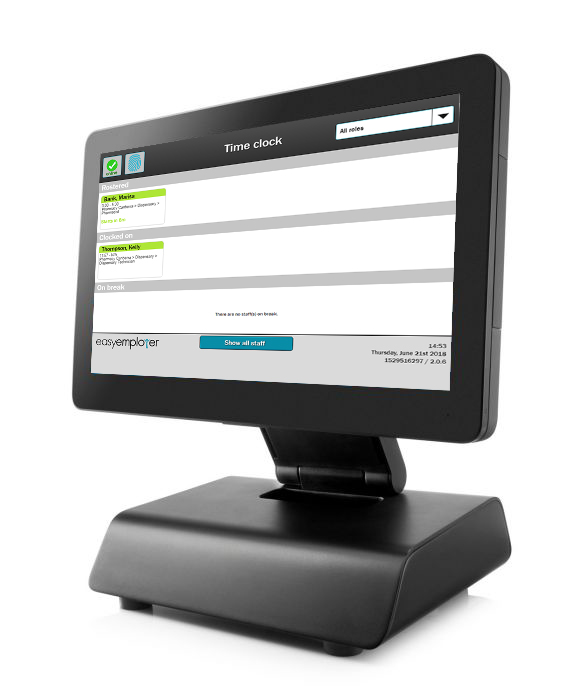

The Easy Employer AIO (All In One) Kiosk is a wall-mountable or desktop, all-in-one Microsoft Windows based POS computer. It incorporates a touchscreen and includes everything required to capture employee work times using either PIN-based and/or biometric authentication.
Technical requirements
Each AIO Kiosk requires:
- A working power point
- An RJ45 network port
- Persistent internet access
Recommended and minimum internet speeds are:
- Recommended: 5 Mb/s download, 2 Mb/s upload or greater
- Minimum: 1 Mb/s download, 0.5 Mb/s upload
The use of a qualified technician to perform installation and setup is strongly recommended.
Unrestricted outbound internet access is preferred. If this is not possible, the firewall rules below must be configured for each site.
NOTE: Proxy servers are not supported.
Networking requirements
| Service | Protocol | Source Port | Destination IP | Destination Port | Action |
|---|---|---|---|---|---|
| NTP | UDP | Any | Any | 123 | Allow |
| DNS | TCP | Any | Any | 53 | Allow |
| DNS | UDP | Any | Any | 53 | Allow |
| HTTP | TCP | Any | Any | 443 | Allow |
| HTTPS | TCP | Any | Any | 443 | Allow |
| Monitoring | TCP | Any | Any | 60003–60023 | Allow |
| Monitoring | TCP | Any | Any | 23560 | Allow |
NOTE:
- Easy Employer AIO Kiosks do not support proxy servers.
- AIO Kiosks cannot be configured for Active Directory or have local computer or security policies modified.
- For full terms and conditions, refer to your AIO Kiosk order form.
